Pinnacle - JUMBO 3D Super | Imaging Wheel Aligner
Type of Product: Alignment |


JUMBO 3D Super Imaging Wheel Aligner $45,995.00

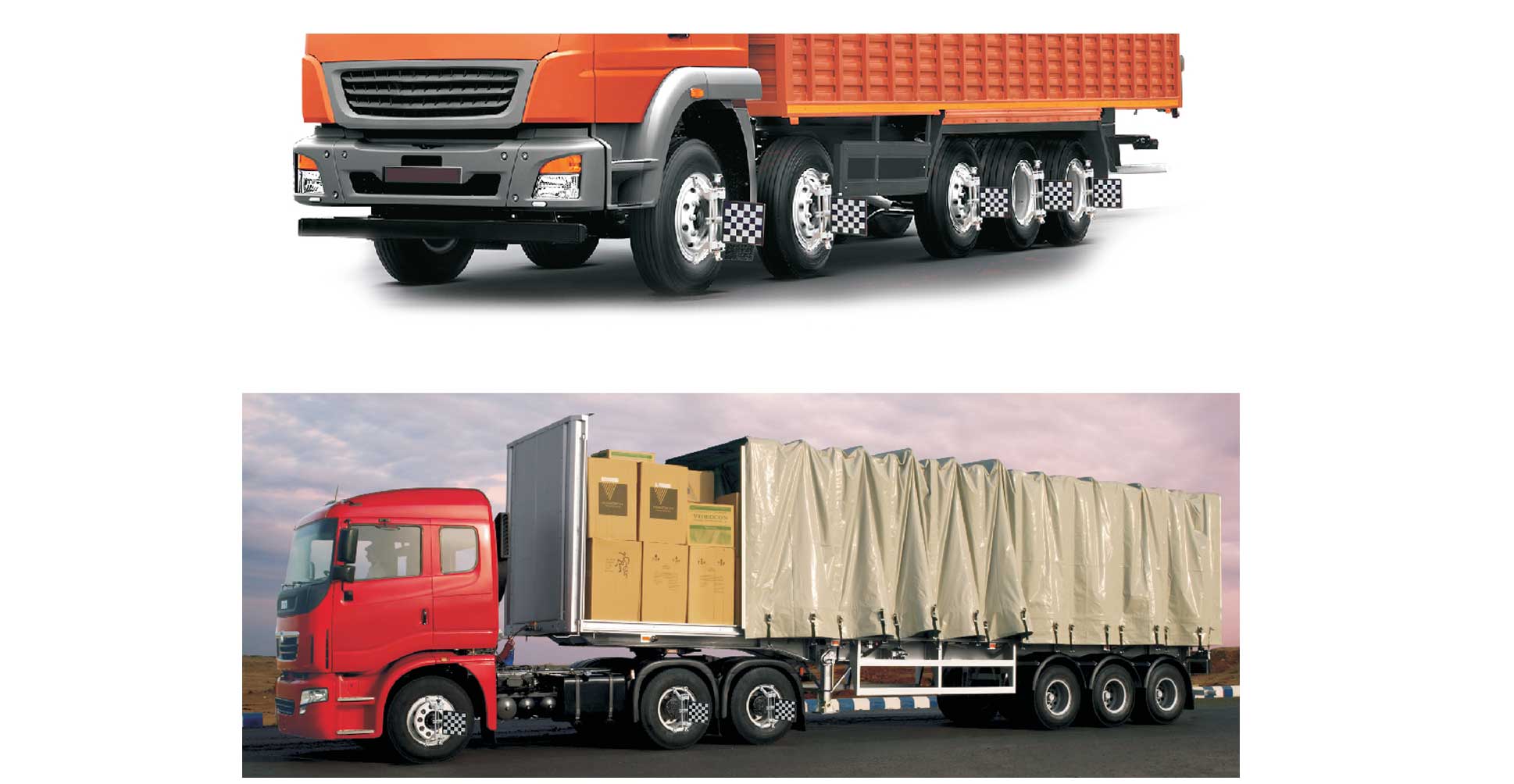

INCLUDES INSTALLATION, SETUP, ONSITE TRAINING, AND FREE SHIPPINGJumbo 3D Super supplied with 10 targets and integrated wheel brackets enables the user to measure results of all 5 axles simultaneously.
Features
- Only 3D Imaging aligner for heavy-duty vehicles
- One-shot runout compensation of all 5 axles
- Runout carried out by driving vehicle (no vehicle pusher required)
- One-shot caster swing for twin steer axles
- 4 high resolution digital cameras
- Get alignment readings of all 5 axles in under 3 minutes
- 4 turn plates included as standard
- Parallelism adjustment
- Thrust/scrub angle adjustment
- Single axle adjustment
- Mobile target stands
- Dual monitors
Targets
- No electronics on wheels
- No sensor calibration issues
- No battery discharge issues
- Compact and lightweight
Jumbo 3D uses latest, innovative, digital-imaging technology by deploying quad camera system for data- acquisition. High resolution digital cameras, two per side, operate with intelligent software & capture seamless images of targets

Includes Installation, Setup, Onsite Training & Free Shipping!

No Electronics on wheels
No Electronics on wheels
- No expensive service bills due to accidental drop of electronic sensors
- No sensor calibration issues
- No battery discharge issues
- Compact and light weight
One Shot Caster swing for twin axles
- Caster swing can be performed for twin steer axles simultaneously
- 4 nos Rotary plates supplied as standard accessory
- No need to remove and refix the targets for each axle
- Increases productivity

Hardware
Parallelism, Thrust / Scrub Angle, & Single Axle Adjustment
Parallelism Adjustment Alignment of Front twin steerable axles to maintain parallel condition Thrust / Scrub Angle Adjustment Alignment of Rear multi axles Single Axle adjustment Thrust angle adjustment in a single axle vehicle is a tedious job using conventional trial & error method. Single axle adjuster tool helps in effortlessly adjusting the thrust angle precisely. Saves considerable time and energy.
Filters - LED
1st in the World
One shot Runout Compensation of all 5 axles- Runout carried out by driving the vehicle
- Alignment completed within 1/3 the time of conventional methods
- No need to remove and refix the clamps and targets for each axle
- No Jacking up of wheels
- No need for vehicle pusher
- Enormous time saving and productivity increased

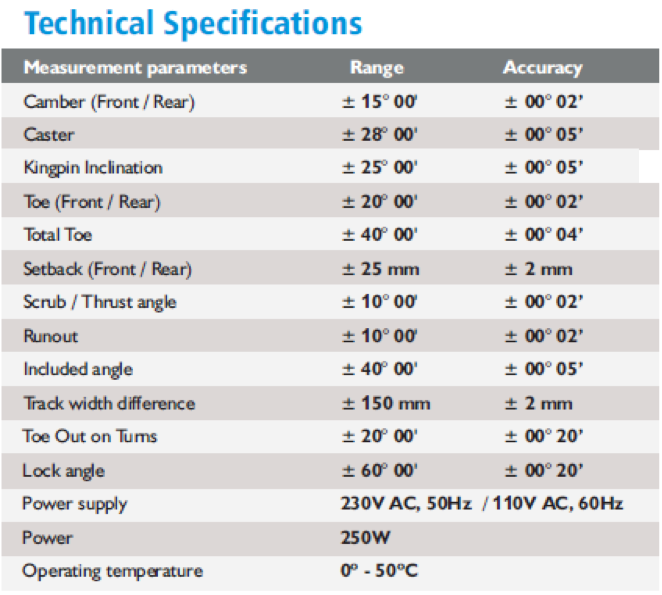

Accessories
Standard Accessories
- Wheel brackets(12"-24") | 10 Nos.
- Target plates | 10 Nos.
- Rotary plates (7 ton) | 4 Nos.
- Steering lock | 1 No.
- Brake pedal lock HCV | 1 No.
- Brake pedal lock LCV | 1 No.
- Adaptor for rim locking pins | 40 Nos.
- PC console with Windows embedded OS, Key board & Mouse | 1 No.
- LED monitor (21.5") HDMI interface | 1 No.
- LED monitor secondary (21.5") VGA interface | 1 No.
- Target stands (2Tx2, 3Tx2) | 4 Nos.
- Remote | 1 No.
- Truck alignment & Data manager software | 1 No.
- Single axle adjuster | 1 No.
- Wheel stoppers | 2 Nos.

Optional
Optional Accessories
- Wheel bracket extension adaptors | 40 Nos.
- Frame offset gauge | 1 No.
- Tyre dia guage | 1 No.
- Printer | 1 No.
- 4 shaft calibration kit (HCV) | 1 No.
Car Kit (Optional)
- Rim locking pins (for Runflat tyre rims & Fancy disc)
- Rim locking pins (for Standard & Steel rims) | 1 No.16 Nos.
- Car alignment & Vehicle data software | 1 No.1 No.
- Front target plate extension spacer 150 mm long | 1 No.4 Nos.
