Autel - MaxiSYS MS906Pro-TS
Type of Product: Diagnostics   |

MaxiSYS MS906Pro-TS

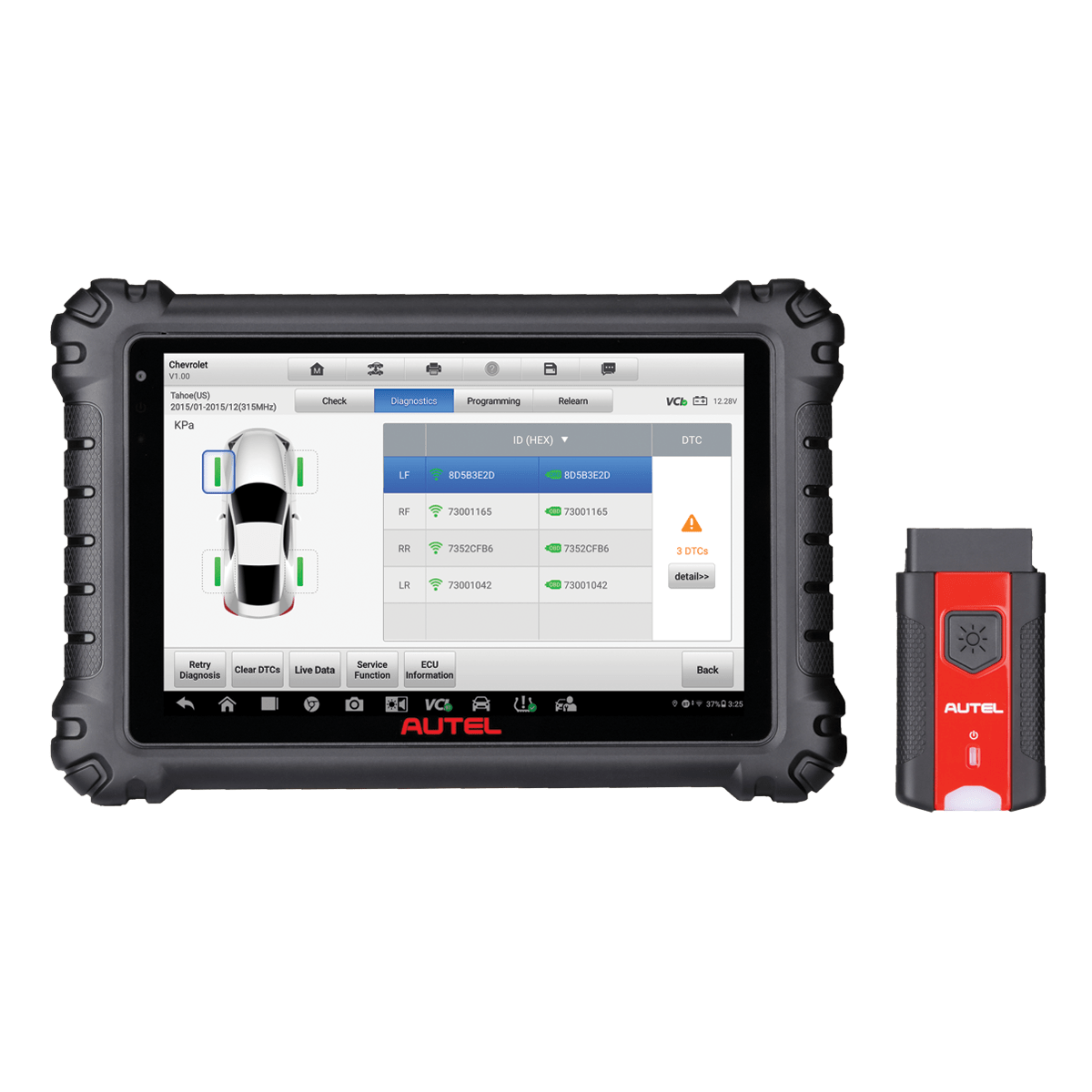

The MaxiSYS MS906Pro-TS is an advanced diagnostic tablet compatible with U.S., Asian and European vehicles, 1996 and newer. This 8-inch wireless Android-based touchscreen tablet performs comprehensive TPMS servicing including 1-Sensor programming to its extensive vehicle diagnostics capability including an all systems scan with ADAS identification, the ability to read/erase codes, view freeze frame and live data, bi-directional control including active testing, coding and adaptations. Includes customizable Pre/Post scans, extensive service menu with 25 of the most of common maintenance tasks. FCA Access via AutoAuth account, starting and charging system analysis with MaxiBAS BT506 Bluetooth tester and terminal cables purchase, ADAS Calibrations capable (frame system and software upgrade required). Includes one year of free software updates and limited hardware warranty.


• Advanced diagnostic tablet compatible with U.S., Asian and European vehicle, 1996 and newer
• Complete TPMS servicing: Activate/read all known sensors, diagnose sysytem, program 1-Sensor, relearn sensors
• 8-inch Wireless Touchscreen tablet with embedded antenna, Bluetooth-enabled MaxiSYS VCI200
• Octa-Core Processor/128 GB memory / 4 GB RAM
• Performs all system scan with ADAS identification/ Customizable Pre & Post scans
• Read/Erase Codes, View Freeze Frame and Live Data
• Bi-directional control capability including Active test/Performs coding and adaptations
• FCA Access via AutoAuth account/ Battery and Charging System analysis (hardware purchase required)
• ADAS Calibration-capable with software upgrade and Autel Calibration System purchase
• One Year Free software updates and limited hardware warranty


Operating System Android 7.0
CPU Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
Memory 4/128GB
Display 8.0" LCD capacitive touch screen with 1920 x 1200P resolution
Battery 11600 mAh
Camera Front: 16 Megapixel, Rear: 16 Megapixel
Special Function 26
Guide Function Support Volkswagen, Audi
Coding and Adaptation BMW F and E chassis coding, Porsche Coding, Ford offline adaptation
TPMS Included
ADAS Support
Battery and Electrical System Testing Support
Weight Support
Cloud Services Support
Remote Expert(Coming Soon) Support
Cloud Report Storage Support
