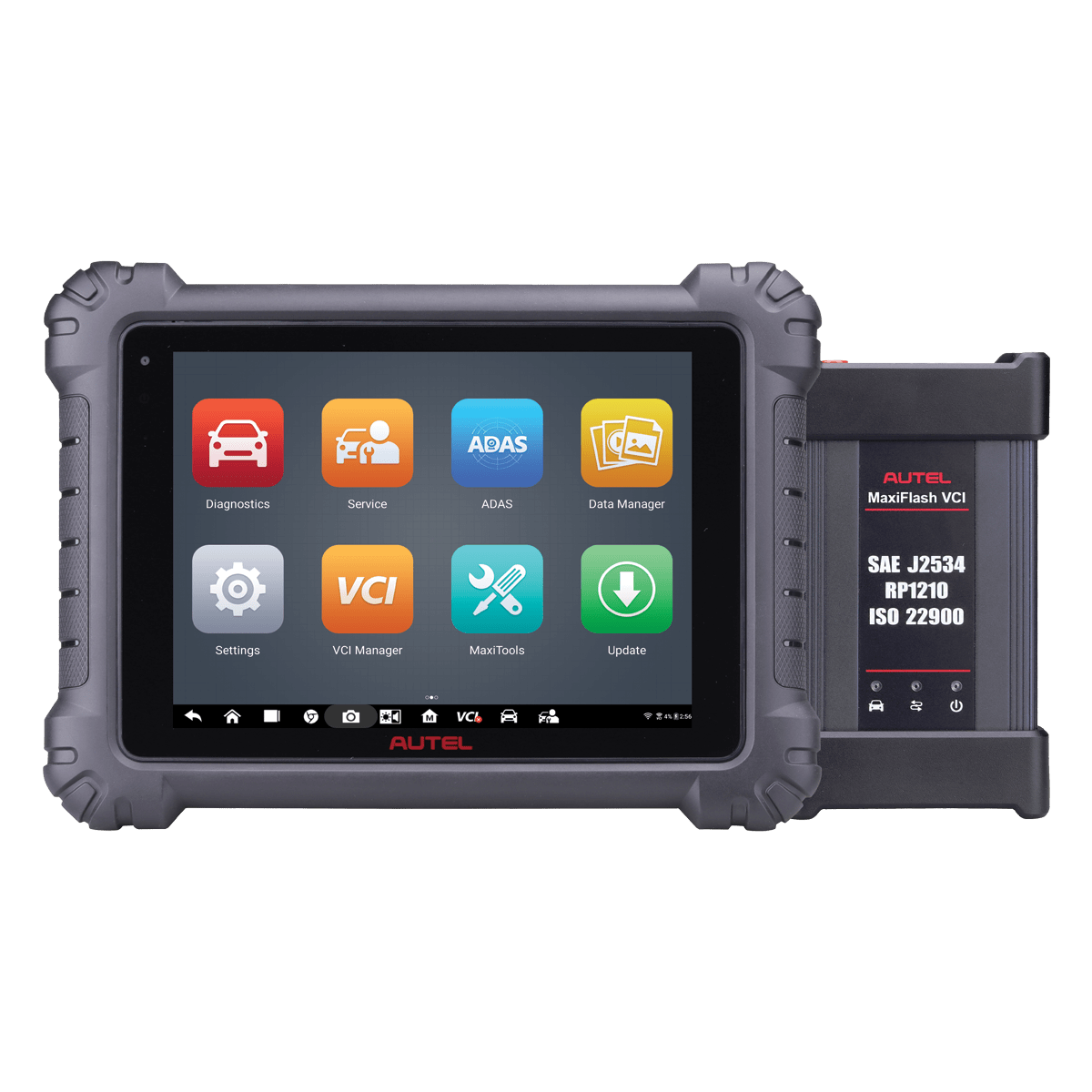

MaxiSys MS909
The MaxiSYS MS909 is a 9.7-inch touchscreen Android-based advanced diagnostic tablet powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), 128GB memory and features an advanced VCI supporting latest DoIP, D-PDU and Mega CAN vehicle communication protocols. The MS909 features topology module mapping capability for supported vehicles. The MS909 features a rechargeable Lithium battery proving 8 hours of continues use, and front and rear cameras.
Features
• 9.7’’ Touchscreen (1536 x 2048) / Android 7.0
• 2.3GHz+1.7GHz Octa-core Processor / 128GB Memory
• New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN
• Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
• License Plate Reader
• ScanVIN: Barcode or Text Recognition with Camera
• Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account

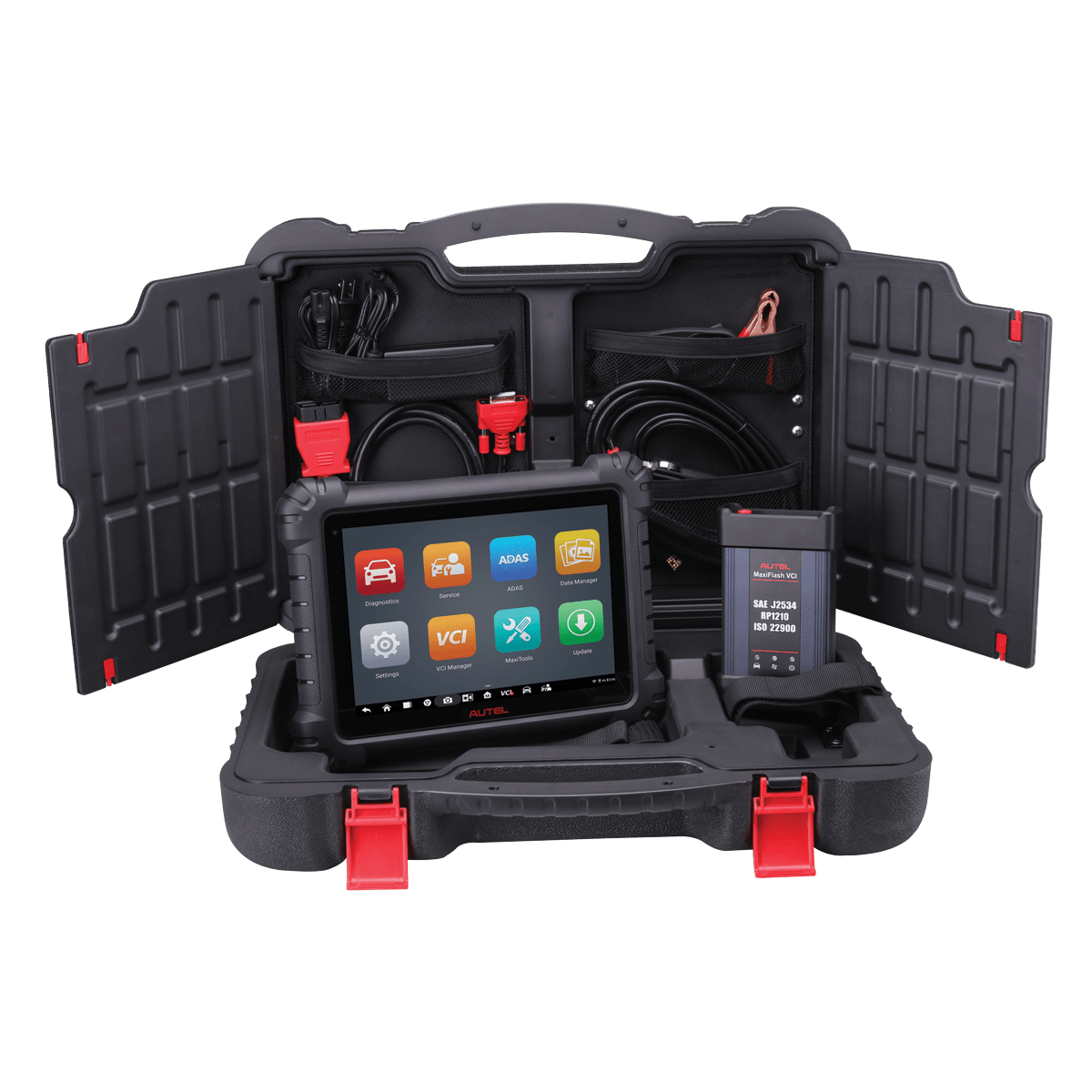

• Includes Cables, MaxiFlash VCI, Carrying Case, 1YR Warranty & Software Subscription
• Enhanced Diagnostic Reports: PreSCAN & PostSCAN
• 15000mAh - 8hrs Continuous Use / 16MP Rear Camera & 5MP Front Camera
Operating System Android 7.0
Processor Samsung Exynos 8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory 4GB RAM & 128GB On-board Memory
Display 9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
Connectivity WiFix2 (802.11 a/b/g/n/ac 2×2 MIMO), BT v.2.1 + EDR, GPS, USB 2.0 (TWO USB HOST Type A, ONE USB mini device), HDMI 2.0, SD Card (Support up to 256GB)
Camera Rear: 16 Megapixel - Autofocus with Flashlight, Front: 5.0 Megapixel
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output Microphone, Dual Speakers, 3-Band 3.5 mm stereo/standard headset jack
Power and Battery 15000mAH 3.8V lithium-polymer battery, Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage 12V/3A Adapter
Power Consumption 5 W
Operating Temperature 0 to 50°C (32 to 122°F)
Storage Temperature -20 to 60°C (-4 to 140°F)
Protocols DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
Dimensions (W x H x D) 304.4 mm (11.98″) x 227.8 mm (8.97″) x 42.5 mm (1.67″)
Weight 1.66kg (3.66 lb.)
