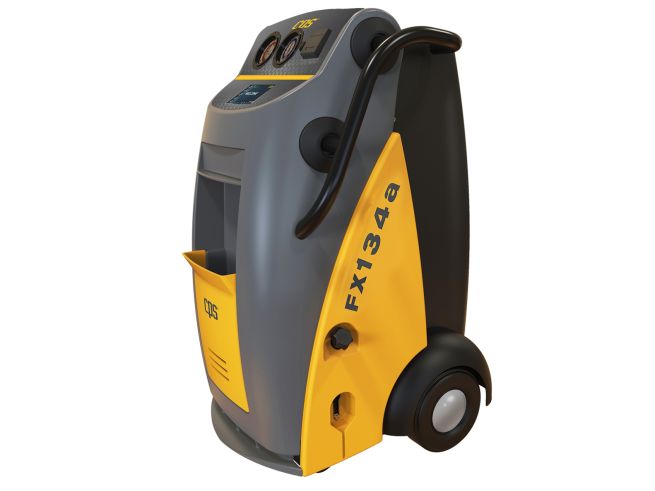

FX134A | Refrigerant Management System

CPS Automotive proudly presents the latest in ease and endurance with its FX Series line of Refrigerant Management Centers that quickly and efficiently recover, recycle, and recharge automotive AC systems.

Key Features

  • 7” Color touch screen control panel
  • Patented motor-controlled ball valves
  • Patented oil-less compressor
  • 1-2-5 Warranty
  • All new ergonomic design
  • Displays maximum load up to 220 lbs. (up to 100 kg)
  • Refrigerant Management System monitors filter life and refrigerant usage
  • Certified to meet SAE J2788H for use in R134a systems


TECHNICAL SPECIFICATIONS

Features:
  • 7” Color touch screen control panel
  • 1-2-5 Warranty
  • Displays maximum load up to 220 lbs. (up to100 kg)
  • Foam-filled wheels
  • Refrigerant Management System monitors filter life and refrigerant usage
  • Hybrid compatible
  • Patented unique, fast and complete refrigerant changeover system
  • Supports multiple languages/UOM
  • Quickly access all functions from the main screen
  • ‘Car Health’ Mode enables printing a snap-shot of pressures before and after service
  • Dual handle bars/hose drapes


2/3 HP OILLESS COMPRESSOR
  • Designed and built by CPS for high capacity commercial applications
  • Eliminates failure issues due to improper oil filling of traditional compressors
MOTOR-CONTROLLED BALL VALVES
  • Opens wider for greater flow
  • Resistant to clogging of debris or sealants
Specifications:
  • Thermal printer standard on all models
  • Vehicle database (included) Refrigerant and oil charging data
  • 50 lb recovery tank (two with FX3030)
  • Recovery rate = Up to 1 lb/min
  • 6 CFM vacuum pump/ 10 micron rated
  • 3.5” gauges
  • 10’ power cord
  • 115v, 850 W


DOWNLOAD DOCUMENTS



Manual - PDF

Product Sheet - PDF

Product Certificate - PDF
