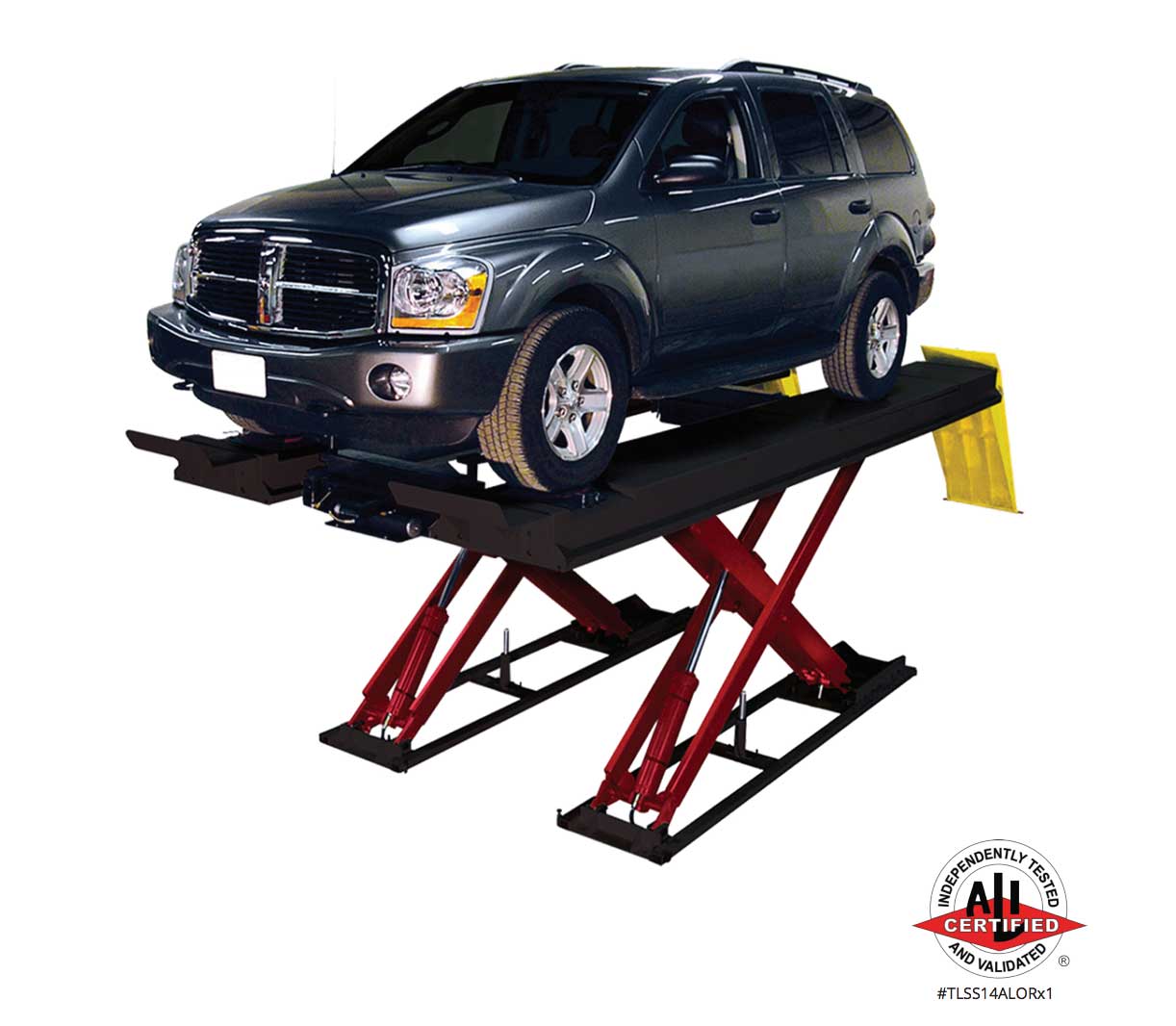

TLS - SCISSOR LIFT TLSS14ALORx1 / TLSS14FDORx1
Type of Product: Lift   |

Scissor Lift

ALIGNMENT OR SERVICE 14,000 LB. / 6.4T CAPACITY

DOUBLE WALL RUNWAYS WITH “Z” RAILS, BUILT IN RADIUS PLATE POCKETS & REAR SLIP PLATE

Features:

  • Built to higher quality standard; 100% North American made - premium US Leeson 3HP / 2.2kw motor and HPI pump.
  • Superior structural strength provides longer life and more precise alignments - Non flex double wall runways with built in “Z” rail and heavy duty 3” x 6.5” x 3/8” / 76mm x 165mm x 9.5mm wall tubular legs.
  • Greater flexibility with more models to chose from 100% North American made - premium US Leeson- Available in surface or flush mounted, alignment or service deck and a choice of floor mounted “console”control or space saving wall/floor mounted power unit with pendant control. 3HP / 2.2kw motor and HPI pump.
  • Premium options and accessories can expand the capabilities and service life Stainless steel radius plates and rear steer plates, built in tire inflation hoses, removable work steps, LED runway lighting and premium heavy duty extended life 5 year warranty HD jacking beams
  • Lower maintenance costs - steel components are wheel-a-brator shot blasted and acid washed before a “double bake” powder coat finish is applied. Zirk style grease fittings at all hinge points. Runway under rear slip plates is open to prevent water and dirt collecting
  • Precision leveling feature provides more accurate alignments - PCB Control with linear transducers control level to within 5/32” / 4mm. The full adjustable floor mounted rack and pinion style “gear blocks” allow for precise levelling.
  • Low pressure hydraulics provides longer life - 2” x 6” / 51mm x 152mm “Break Out” cylinders allow the 25” x 4-1/2” / 635mm x 114mm ID cylinders to operate at < 2500 psi under full load.
  • Designed for greater technician productivity - there are no obstructions between the runways or base frame. The lift rises 74” / 1880mm in 58 seconds with 20 locking positions. Built in runway compressed air outlets front and rear.

Tags: Lifts

Continue reading

TLS - SCISSOR LIFT TLSS16ALORx1 / TLSS16FDORx1
Type of Product: Lift   |

Scissor Lift

ALIGNMENT OR SERVICE 16,000 LB. / 7.3T CAPACITY

DOUBLE WALL RUNWAYS WITH “Z” RAILS, BUILT IN RADIUS PLATE POCKETS & REAR SLIP PLATE

Features:

  • Built to higher quality standard; 100% North American made - premium US Leeson 3HP / 2.2kw motor and HPI pump.
  • Superior structural strength provides longer life and more precise alignments - Non flex double wall runways with built in “Z” rail and heavy duty 3” x 6.5” x 3/8” / 76mm x 165mm x 9.5mm wall tubular legs.
  • Greater flexibility with more models to chose from 100% North American made - premium US Leeson- Available in surface or flush mounted, alignment or service deck and a choice of floor mounted “console”control or space saving wall/floor mounted power unit with pendant control. 3HP / 2.2kw motor and HPI pump.
  • Premium options and accessories can expand the capabilities and service life Stainless steel radius plates and rear steer plates, built in tire inflation hoses, removable work steps, LED runway lighting and premium heavy duty extended life 5 year warranty HD jacking beams
  • Lower maintenance costs - steel components are wheel-a-brator shot blasted and acid washed before a “double bake” powder coat finish is applied. Zirk style grease fittings at all hinge points. Runway under rear slip plates is open to prevent water and dirt collecting
  • Precision leveling feature provides more accurate alignments - PCB Control with linear transducers control level to within 5/32” / 4mm. The full adjustable floor mounted rack and pinion style “gear blocks” allow for precise levelling.
  • Low pressure hydraulics provides longer life - 2” x 6” / 51mm x 152mm “Break Out” cylinders allow the 25” x 4-1/2” / 635mm x 114mm ID cylinders to operate at < 2500 psi under full load.
  • Designed for greater technician productivity - there are no obstructions between the runways or base frame. The lift rises 74” / 1880mm in 58 seconds with 20 locking positions. Built in runway compressed air outlets front and rear.

Tags: Lifts

Continue reading

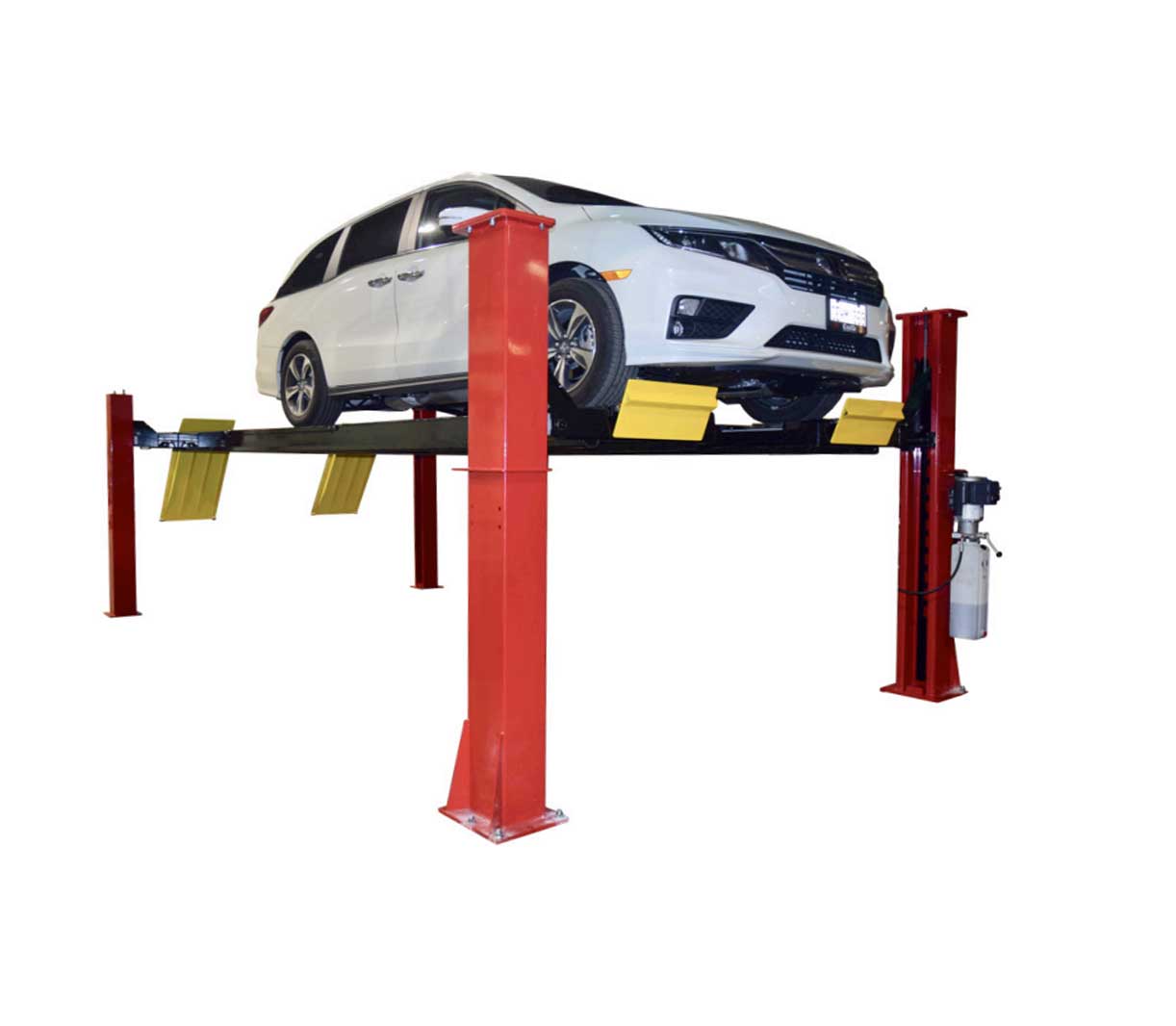

TLS - 4 POST TLS415ALOXR1 / TLS415FDOXR1
Type of Product: Lift   |

4 Post Open Front

ALIGNMENT OR SERVICE 15,000 LB. / 6.8T CAPACITY

DOUBLE WALL RUNWAYS WITH “Z” RAILS, BUILT IN RADIUS PLATE POCKETS & REAR SLIP PLATE

Features:

  • Built to higher quality standard; 100% North American made - premium US Bucher 2HP / 1.5kw power unit.
  • Corrosion resistant protection - steel components are wheela-brator shot blasted and acid washed before a “double bake” powder coat finish is applied.
  • Superior structural strength provides longer life and more precise alignments - Non flex double wall 23” / 584mm wide runways with built in “Z” rail. Heavy duty 10” x 8-3/8” x 1/4” wall / 254mm x 213mm x 6mm wall columns and 3” x 8-1/4” / 72mm x 210mm tube traverse beams.
  • Greater flexibility with more models to chose from - Available in two runway lengths with built in wheel alignment or service deck. Lift can be ordered in red or blue.
  • Premium options and accessories can expand the capabilities and service life - Stainless steel radius plates and rear steer plates, built in tire inflation hoses, removable work steps, LED runway lighting and premium long life 5 year warranty HD jacking beams
  • Lower maintenance costs - Zirk style grease fittings at all 1-1/2” / 38mm plated hinge pins. Runway under rear slip plates is open to prevent water and dirt collecting. Thirty 7/8” / 22mm enclosed plated steel slip plate balls provide better support with minimal maintenance.
  • Extended Life “Non Twist” Cable design - Machined steel nickel plated 9” / 229mm pulleys with bronze self lubricating bushings. Non spin fatigue resistant 9/16” / 14mm cables are routed on double stacked pulleys (versus four stacked) to reduce stress and wear.
  • Low pressure hydraulics provides longer life - 4”ID x 65” / 102mm ID x 1651mm cylinder is mounted under the runway and use a premium “Parker” seal and wear ring with chrome plated plunger shaft.
  • Designed for optimum productivity - OPEN FRONT design provides clear access .Single point control with stainless steel cylinder air releases engage 12 locking positions. Adjustable locking ladders 81” x 2-3/4” x 3/8” / 2057mm x 70mm x 9.5mm thick allow for accurate levelling. Power unit can be mounted on a front or rear column.
