Autel - MaxiTPMS ITS600 (NEW)
Type of Product: Diagnostics - TPMS   |

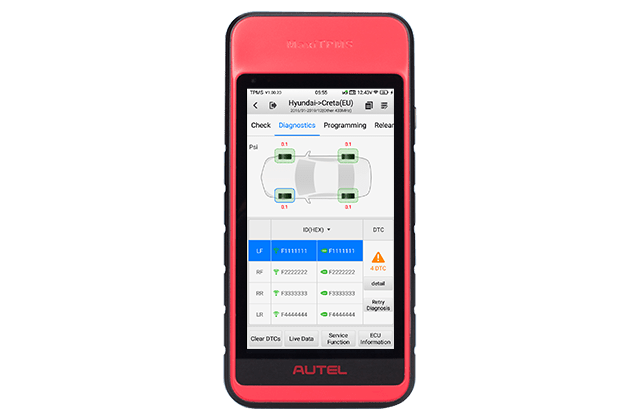

The MaxiTPMS ITS600 is a wireless, touchscreen Android-based tablet that offers complete TPMS diagnostics and service functions. The tablet features a 5.5-inch color display and Bluetooth vehicle communication interface (VCI). Compatible with U.S, Asian and European TPMS-equipped vehicles, the ITS600 features an enhanced TPMS status screen, VINscan for rapid vehicle identification, two MX-Sensor programming options, OBDII relearn functionality and onscreen relearn instructions for all vehicles. The ITS600 can activate, read and relearn all known sensors, perform an all vehicle systems diagnostics and perform four common maintenance services. The ITS600 is compatible with Autel’s TBE200 Tire Tread & Brake Disc Wear Analysis tool, sold separately. The ITS600 includes one-year free TPMS software updates and a year limited warranty.

Autel - MaxiTPMS ITS600 (page)


  • Complete TPMS Service and Diagnostics Tablet
  • Wireless Touchscreen Android-based Tablet Tool
  • Activates, Reads and Relearns All Known Sensors
  • Two MX-Sensor Program Modes; Batch Program Up to 20 MX-Sensors
  • 5.5 Inch Color Display; Android 9.0 OS
  • Includes Wireless Bluetooth Vehicle Communication Interface (VCI)
  • On-Tool DOT Tire Registration
  • Enhanced, At-a-Glance Diagnostics Status Screen
  • Rapid VIN Acquisition Via Optical VINscan Function
  • Read/Erase All System Codes and Perform OLS, BMS, SAS and EPB

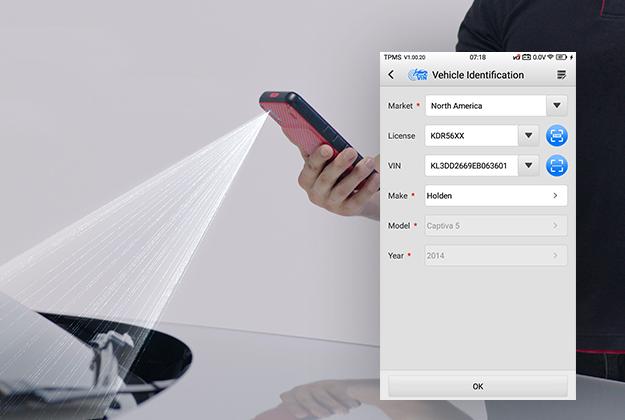

Its600 Vehicl Id


  • Rapid VIN acquisition via optical VINScan
  • QR Code Scan / Barcode Scan, Plate scan, Auto VIN detect and manual input
  • Identify MMY and sensor OE part number via VIN decoding

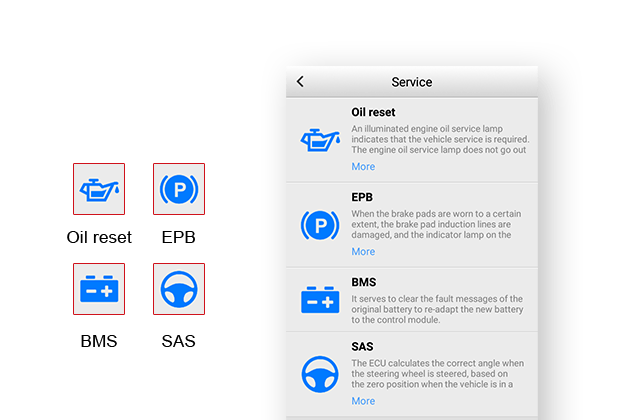

Its600 Diagnostics


  • Oil light reset
  • Electronic brake service
  • Battery registration
  • Steering angle reset
  • Included service function updates are free for the life of the tool
  • All systems diagnostics and maintenance services software available with Pro Upgrade purchase

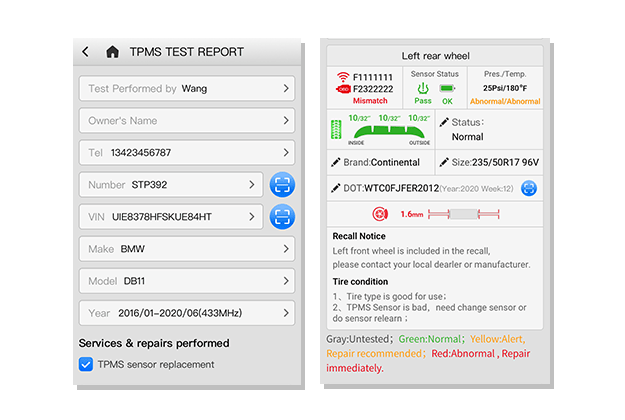

Its600 Tire Service


  • Quick & Easy Tire DOT Number Scan
  • Tire Expiration Notice
  • Tire Recall Lookup Tread Depth & Brake Disc Wear
  • Precise laser measurement of tread depth & brake disc wear with purchase of Autel TBE100/TBE200
  • Comprehensive Test Report: TPMS health‚ Tread depth & brake disc wear characteristics


Display 5.5-inch LCD capacitive touchscreen with 1280×720 resolution
Power 3.8 V/5000 mAh lithium-polymer battery; charges via 5 V AC/DC power supply
Operating Temp. -10 to 45°C (14 to 113°F)

Storage Temp. -20°C to 60°C (-4°F to 140°F)
Dimensions 183.0 mm (7.2”) / 89.0 mm (3.5”) / 22.0 mm (0.87”)
Weight 368g (0.8 lb.)


ITS600 Quick Guide (US Version) - PDF

ITS600 User Manual (US Version) - PDF

ITS600 Comparison Chart (US Version) - PDF

ITS600 & TBE200 Quick Start (US Version) - PDF

Maxi_PC_Suite_V1.21 Windows Version - zip

MaxiPCSuite_mac_V1.11 Mac Version - zip

ITS600 Function List (EU) - PDF

ITS600 Function List (US) - PDF

Tags: Diagnostics Diagnostics - TPMS
