Challenger Lift - CL10V3 Series
Type of Product: Lifts   |

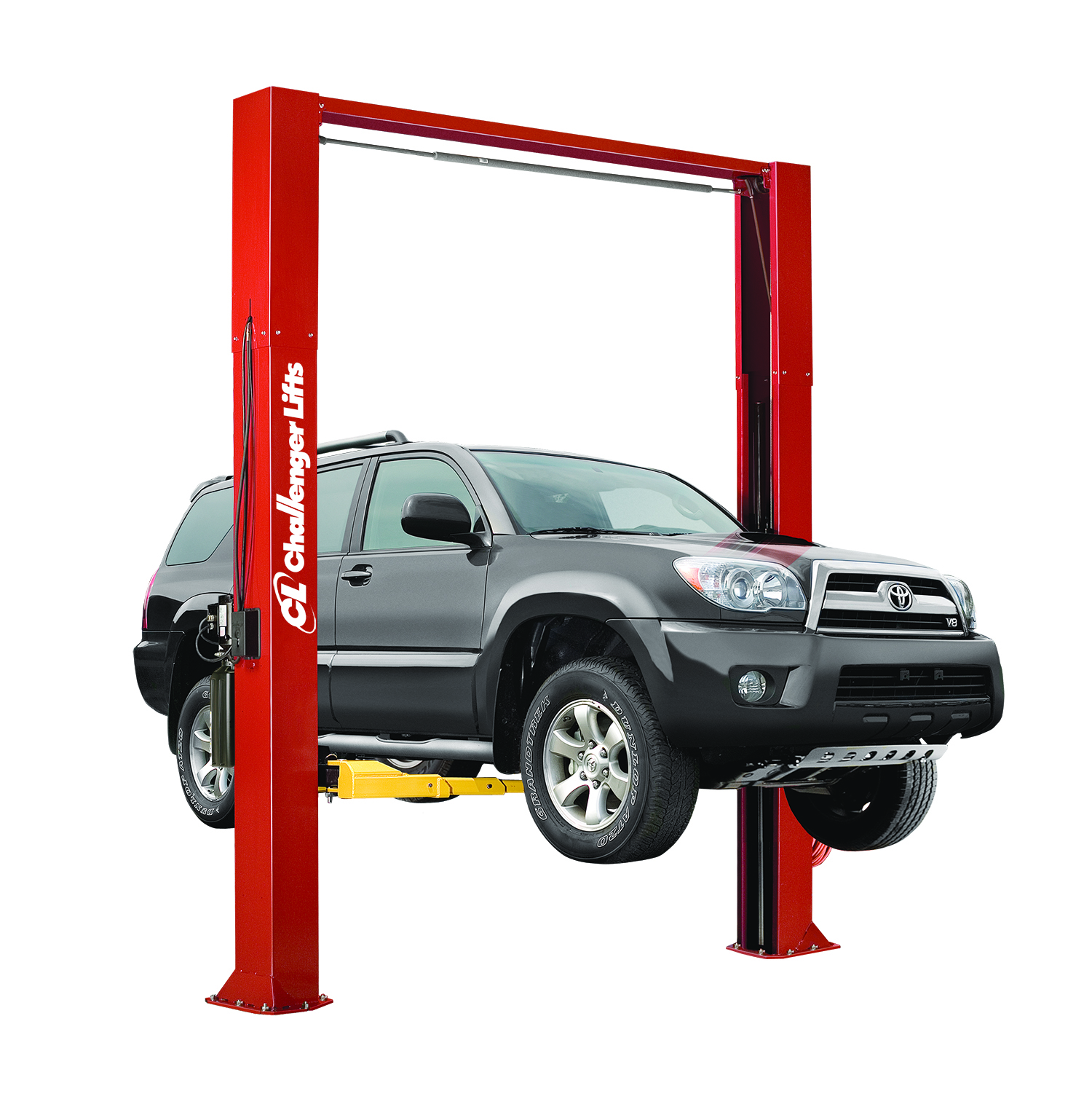

CL10V3 Series

Challenger’s CL10V3 model features our exclusive Versymmetric® technology to allow you to service the widest range of vehicles and maximize your bottom line. 3-stage front and 3-stage rear arms with our industry-first directSPOT™ design eliminate the need to shuffle a vehicle back and forth to swing the front arm clear of the tire to reach recommended lift points. Accurate first-try spotting will boost your productivity as well as reduce frustration in your shop.

We also offer the CL10V3 in several configurations to meet your service application needs. A drive-on pad option provides the quickest vehicle spotting for express bays. Our added Quick Cycle™ models can rise in just 27 seconds and lower in only 17 seconds. Quick Cycle™ technology’s increased lift speed will drastically boost your service potential. Adjustable height and width options are also available. In addition, choose between a wide range of accessories to make the CL10V3 the perfect choice for your shop. Expand your service potential with our most versatile, easy-to-operate lift.

ALI/ETL certified.


Features:

  • 10,000 lb. lift capacity
  • Versymmetric® offset front arms provide directSPOT™ to vehicle lift points and safely lifts both symmetrically and asymmetrically within the same service bay maximizing service capabilities and revenue potential
  • Oversized 5″ diameter pulley and heavy duty 5/16″ cable reduces stress on equalization system and increases cable life
  • 48″ elongated carriage design increases lift life
  • Standard model fits 12′ ceiling height. Additional 2 foot or 3 foot extensions available
  • Padded overhead shut off system prevents vehicle damage
  • Premium double telescoping screw pads adjust to multiple heights minimizing the need for adapters
  • Fully gusseted base plate design increases column rigidity
  • Pulley-less jacketed single-point lock release system makes for smoother, easier operation and longer life
  • Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage
  • Plated arm restraints and arm pins inhibit rust and provide long-lasting durability
  • Premium powder coat finish provides long-lasting durability

TECHNICAL SPECIFICATIONS

Lifting Capacity 10,000 lbs
Lifting Configuration Versymmetric (Symmetric & Asymmetric)
Arms 3-stage front/3-stage rear
Rise Height 74.125”
Overall Height 140”
Overall Height (Cylinder Extended) 143”
2’ Height Extension Available on all models
3’ Height Extension Available on all models
Overall Width 138.5” / 143”
Drive-Thru Clearance 100” / 104.5”
Floor to Overhead Switch 134.5”

Front Arm Reach 20” - 42”
Rear Arm Reach37.625” - 60”
Screw Pad Height 3.875” - 6.125”
Inside Columns 110” / 114.5”
Motor / Voltage 2HP, 208v-230v, 60Hz, 1Ph
Speed of RiseCL10V3 & CL10v3-DPC : 38s | CL10v3-QC & CL10v3-DPC-QC : 27 s
Ceiling Height Required 11' 11"
ALI/ETL CertifiedAll Models certified
Quick Cycle Available on CL10v3-QC & CL10v3-DPC-QC models
Dual Pendant Controls Available on CL10v3-DPC & CL10v3-DPC-QC
Colors Available Red, Blue, Black
