Type of Product: Programming   |

MaxiFlash VCI Kit

The MaxiFlash VCI Kit, compatible with the MaxiSYS MS909 advanced diagnostic tablet, includes a bluetooth-enabled vehicle communication interface (VCI), a J2534-compliant pass-thru programming device. This VCI Kit also includes an Autel Main Cable V2.0, USB 2.0 cable, and AC/DC adapter. The MaxiFlash VCI supports CAN FD, 4 CAN Channels, D-PDU, IS 022900-1 and ISO 22900-2 protocols and is RP1210 compliant. The MaxiFlash VCI can be use with Windows computer with applicable OE subscription for vehicle module programming and when connected to the MaxiSYS MS909 tablet for compatible BMW and Mercedes vehicle module programming. Includes one-year Warranty.

Type of Product: Programming   |

MaxiFlash VCMI Kit

The MaxiFlash VCMI Kit, compatible with the MaxiSYS Ultra and MaxiSYS MS919 diagnostic tablets, includes VCMI capable of acting as vehicle communication interface (VCI), J2534 pass-thru programming device, multimeter, 4-channel oscilloscope, waveform generator and CAN-Bus tester plus operating and power cables, probes, leads and attenuator to perform measurements. Includes OBDII main cable, AC/DC power supply, USB 2.0 cable, Scope test leads, Multimeter test leads, Flexible and standard Back-Pinning probes, large Dolphin and small Crocodile clips, Attenuators and plastic tool box for small kit pieces. Includes one-Year Limited Warranty.

Type of Product: Programming   |

MaxiFlash Xlink

The MaxiFlash Xlink is a 3-in-1 communication and programming device that can act as an enhanced vehicle communication interface (VCI), a J2534 pass-thru programmer, and a Remote Expert-ready device. Use the Xlink to enable Remote Expert’s experienced programmers, diagnosticians, and system experts to connect to the vehicle needing service in your shop. Use the Xlink as a J2534 pass-thru programmer with OE software subscriptions to flash or program system modules onsite. Use the Xlink as an enhanced VCI with any MaxiSYS tablet to communicate with and diagnose vehicles using the latest protocols. Includes a one-year limited warranty.

Type of Product: Programming   |

MaxiIM IM508S

The IM508S is an Android-based touchscreen diagnostic, service and key programming tablet. This 7-inch Wi-Fi tablet includes the XP200 key programmer, offers immobilizer and key programming capability for most U.S., and Asian vehicles. Use to program Autel’s line of IKeys. The IM508S, an all-systems code reader and service tool, offers powerful IMMO functionality including backup, restore, adaptations and coding, key generation and key learning & remote learning.

Features

• MaxiIM IM508S is an ultra fast portable immobilizer and key programming device
• Powerful combination of key programming/all system diagnostics/maintenance services
• Smart Mode for guided and automated key learning
• Expert Mode for advanced key learning
• Read PIN/CS (all key lost), key generation, key learning, remote learning
• IMMO ECU reset/adaptation, refresh/coding
• All systems diagnostics for US, Asian and European vehicles, 1996 and newer
• Maintenance services including EPB, DPF, SAS, Oil reset, and BMS

Type of Product: Programming   |

MaxiIM IM608PROIIKPA

The IM608PROIIKPA is a comprehensive key and immobilizer programming package of the MaxiIM608PROII 10.1-inch Android touchscreen tablet, XP400Pro key and chip programmer, the wireless JVCI J2534 pass thru programming device and the Key Programming Adapter kit. The IM608PROII enables key learning directly through the OBDII port for 85 percent of vehicles in North America. The tablet can read the immobilizer pins and password directly from the vehicle and store this information to use later when learning the newly programmed keys to vehicle. The IM608PROII is also an advanced diagnostics tablet featuring AutoVIN and AutoSCAN technology to automatically identify the vehicle and perform an all systems scan. The advanced diagnostics functions of the IM608 include the ability to perform active test, coding and adaptations. Use to program Autel’s line of IKeys.

Features

• MaxiIM IM608PROII 10.1-inch Android Touchscreen Tablet
• Program IMMO & Keys for U.S., Asian and European Vehicles
• XP400Pro Key and Chip Programmer
• JVCI Wireless J2534 Pass Thru Programming Device
• Includes IMKPA Key Programming Adapter Kit

Type of Product: Programming   |

MaxiIM KM100

MaxiIM KM100 is an advanced key and immobilizer touchscreen tablet capable of smart key creation and IMMO learning via OBD. This 5.5-inch, Android touchscreen tablet with Bluetooth VCI can program the Autel IKEY as a smart key replacement for more than 3000+ vehicles and offers IMMO programming capability for multiple vehicle brands including BMW, Volkswagen, Toyota, Honda, and General Motors. Additional innovative features include key renewal and Transponder Editing of 20 supported protocols.

Features

• Advanced key and immobilizer 5.5-inch touchscreen tablet with 2 IKEYS
• Program Autel's IKEY universal keys as smart key replacement for more than 700 vehicles
• One-minute Key generation, Easy key button customization
• Chip Read and Write, Cloning and Frequency Detection
• Extensive IMMO Key programming coverage including BMW, VW, Toyota, Honda and GM
• Reads/displays IMMO info including IMMO ECU, VIN and Pin code
• IMMO functions: key learning, remote control learning, remote control add
• Key Unlocking, Key Renewal, Toyota Smart Key Unlocking
• Includes Bluetooth-enabled VCI
• Includes one year of free software updates and one-year limited warranty

Type of Product: Programming   |

MaxiFlash VCI Kit

The MSOBD2KIT, compatible with the MSUltra, MS919 and MS909, includes OE-compliant adapters for specific vehicles produced between 1996 and 2002 without the standard OBD2 pin configuration. Connectors Include Nissan-14, Mitsubishi/Hyundai 12+16, Kia-20, BMW-20, Benz-38, VW/Audi-2+2, Mazda-17, Chrysler-16 and Benz-14, within a blow-molded carrying case.

Type of Product: Diagnostics - TPMS   |

MaxiTPMS TS608

COMPLETE TPMS & ALL SYSTEM SERVICE TABLET TOOL
As the first comprehensive TPMS & Diagnostic tool in the market, MaxiTPMS TS608 provides you with superior experience in TPMS health check, sensor programming, TPMS relearn, all system diagnostics as well as special service functions. Equipped with a 7-inch touch screen with 1024 * 600P resolution and a VCI mini for wireless communication with the test vehicle, powered by the quad-core Cortex-A9 processor for smooth operation and featured by advanced TPMS & Diagnostic technology, MaxiTPMS TS608 is setting new standards for TPMS service tools.

Type of Product: Programming   |

MaxiVideo MV105/108

The MV105/108 digital inspection camera is designed to work with MaxiSys series products (except MaxiSys 906) or PC. It turns your MaxiSys tablet into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.

Type of Product: Programming   |

Tesla 3 and Y-Compatible Adapter

Tesla 3 and Y model vehicles-compatible diagnostic cable adapter. Diagnostic software for Tesla 3 and Y models is available on an Ultra series tablet. Connect to the vehicle and Autel vehicle communication interface (VCI). Connection instructions included. Tesla diagnostics require Internet and server access, available with an active Autel subscription. The connection enables the ability to read and erase codes and view live data. Limited one year warranty.

Type of Product: Programming   |

Tesla Diagnostic Adapter Cables

Diagnostics cable kit: LAN001, CAN001 and CAN002. Compatible with most Tesla S, X, Y, and 3 models, 2019 and newer. Enables MaxiSYS tablet users to connect with Tesla S, X, Y, and 3 vehicles to activate factory/service mode and perform system diagnostics and ADAS calibrations.

Type of Product: Programming Equipment   |

CarDAQ-M®

Upgradeable to Meet Future Vehicle Technology

• Easy, plug-n-play, field-upgradeable modules
• Add new modules as you want… when you want
• Designed for high performance and durability

Type of Product: Programming Equipment   |

CarDAQ-Plus 2® Kit

• Do-It-Yourself Programming and Diagnostics
• All makes / All Models
• OE subscription costs vary and are available in different terms
• Purchase and learn your own OE application

Type of Product: Programming Equipment   |

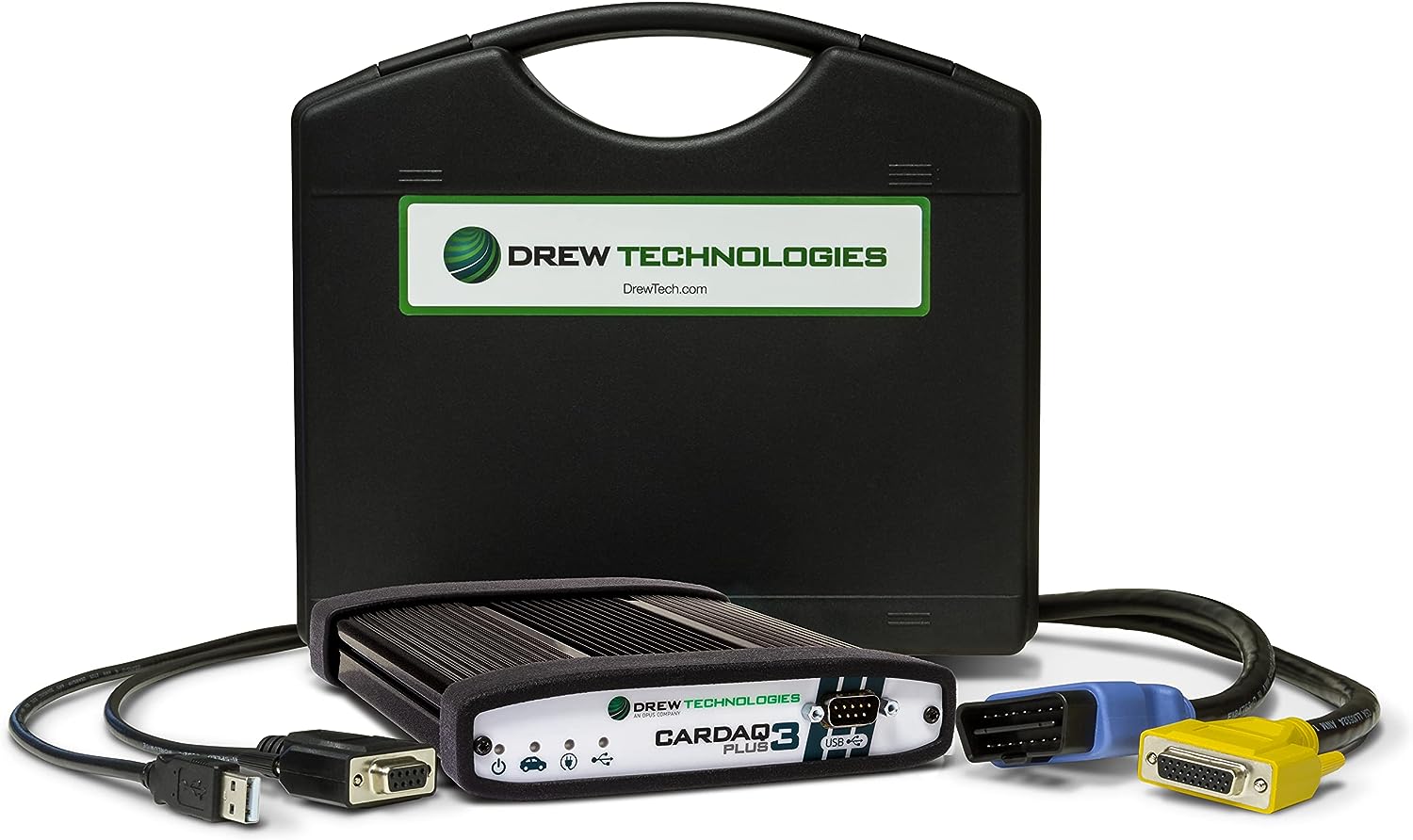

CarDAQ-Plus 3® Kit

• CAN FD: Supports Flexible Data Rate CAN, (being introduced in the near future).
• J2534 v05.00 API: The newest version of J2534 to give you the latest in pass-thru technology
• 4 CAN Channels: Going beyond the 3 required by select Chrysler/FCA models, CarDAQ-Plus 3® also provides a 4th to meet the needs of future OEM applications.
• DoIP: Automotive Ethernet for advanced vehicle communications.

Type of Product: PROGRAMMING   |

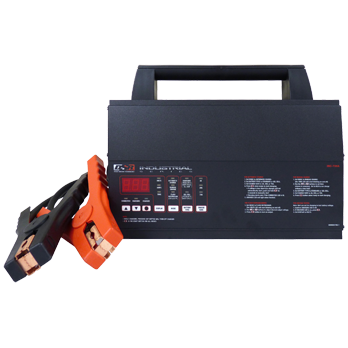

Schumacher - INC-700A

POWER SUPPLY FEATURES •
Constant voltage output selectable from 13.0 to 14.8V DC •
Output current up to 70 amps •
Clean power for flash reprogramming •
Provides power to vehicles on display

BATTERY CHARGER FEATURES •
Fully automatic operation for 12V batteries •
Works with regular automotive, deep-cycle, AGM, and gel cell battery types •
Variable charge rates 4/20/70 amps •
Digital volts and amps display •
Manual mode with digital timer

UNIT FEATURES•
120/220 VAC 50/60 Hz Input •
Microprocessor-controlled operation •
Extra-long 9'’ line cord with 20A plug •
Extended reach 9'’ output cables •
Heavy-duty clamps with replaceable jaws •
Large carrying handle
Adjustable mounting brackets for easy installation on most size shop vehicle lifts •
Dual temperature controlled cooling fans •
Durable anodized aluminum case •
Can supply a constant voltage for flash reprogramming •
UL/CUL approved
