Autel - MaxiTPMS TS608 (NEW)
Type of Product: Diagnostics - TPMS   |

MaxiTPMS TS608

COMPLETE TPMS & ALL SYSTEM SERVICE TABLET TOOL
As the first comprehensive TPMS & Diagnostic tool in the market, MaxiTPMS TS608 provides you with superior experience in TPMS health check, sensor programming, TPMS relearn, all system diagnostics as well as special service functions. Equipped with a 7-inch touch screen with 1024 * 600P resolution and a VCI mini for wireless communication with the test vehicle, powered by the quad-core Cortex-A9 processor for smooth operation and featured by advanced TPMS & Diagnostic technology, MaxiTPMS TS608 is setting new standards for TPMS service tools.

Autel - MaxiTPMS TS608 (NEW)

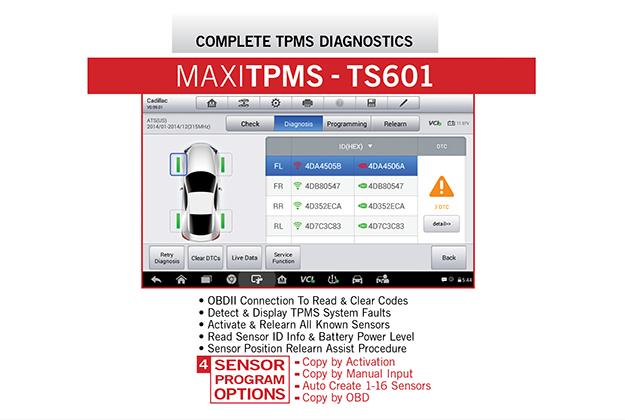

COMPLETE TPMS FUNCTIONS

  1. Activate all known TPMS sensors and read sensor status;
  2. Diagnose ECU for complete TPMS health check with DTC description;
  3. Read DTCs from ECU and erase DTCs;
  4. Program MX-Sensors by copying original sensor IDs or creating new IDs randomly;
  5. On-tool relearn procedure and wide OBD relearn coverage;
  6. Toolkit, special TPMS functions;

Tpms 2

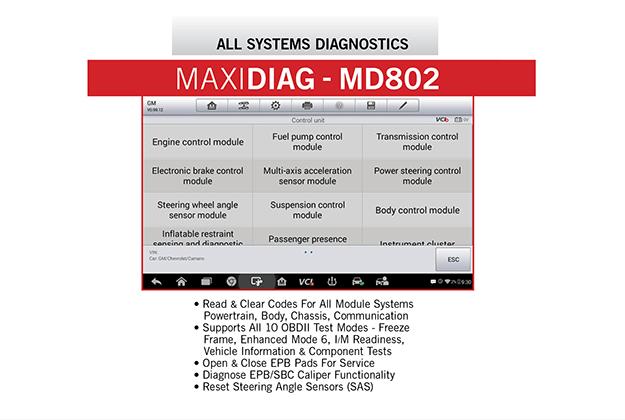

ALL SYSTEMS DIAGNOSTICS

  1. Read/clear codes for all available electronic systems;
  2. Turn off warning lights;
  3. Display live data in text, graph & analog for easy data review;
  4. Supports all 10 test modes of the latest J1979 OBD II test specs;
  5. Enhanced OBDII Mode 6;

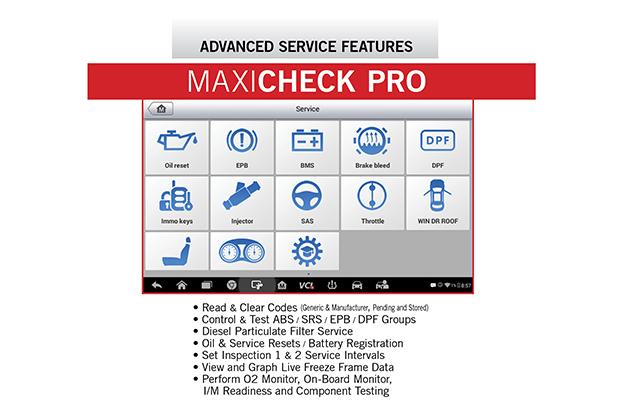

ADVANCED SERVICE FEATURES

  1. Relearn parking brake pad after replacement;
  2. Reset Steering Angle Sensor (SAS);
  3. Reset service mileage and service intervals;
  4. Forced regeneration and adjusting injectors;
  5. Support battery registration and reset;
  6. Support IMMO functions;

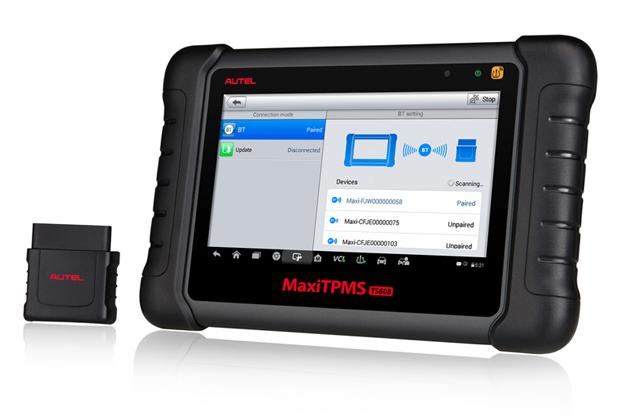

WIRELESS BLUETOOTH MAXI-VCI MINI

The latest compact size Wireless Bluetooth MaxiVCI Mini OBDII connector can transmit vehicle data to the tablet without a physical connection. Enhanced wireless bluetooth connectivity between the tablet and VCI device allows greater service mobility and easier TPMS sensor interaction while the tablet is still connected to the vehicle for data transmission.




TECHNICAL SPECIFICATIONS


Recommended Use Indoor
Operating System Android™ 4.4.2, KitKat
Processor Cortex-A9 processor (1.6 GHz)
Memory 1GB RAM DDR3 & 32GB ROM
Display 7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity Mini USB 2.0; | USB 2.0; | Wi-Fi; | HDMI Type A; | Micro SD card slot (supports up to 32GB);
Sensors Light sensor for brightness auto adjust
Audio input/output Input: N/A; | Output: Beep;
Power and Battery 3.7 V/5000 mAh lithium-polymer battery; | Charges via 5 VDC power supply;

Tested Battery Life Around 7 hours of continuous use
Battery Charging Input 5 V/1.5 A
Power Consumption 600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp. -10 to 60°C(14 to 140°F)
Storage Temp. -20 to 70°C (-4 to 158°F)
Operating Humidity 5% - 95% non-condensing
Dimensions (W x H x D) 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
Net Weight 885 g (2.31 lb.)
Protocols
  • ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code,
  • SAE-J1850 VPW, SAE-J1850PWM,
  • ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN),
  • SAE J2610, GM UART,UART Echo Byte Protocol,
  • Honda Diag-H Protocol, TP2.0, TP1.6


DOWNLOAD DOCUMENTS


TS608 User Manual V1.2 - PDF

TS608 Introduction (US Version) - PDF

TS608 TPMS Quick Guide - PDF
