LE10

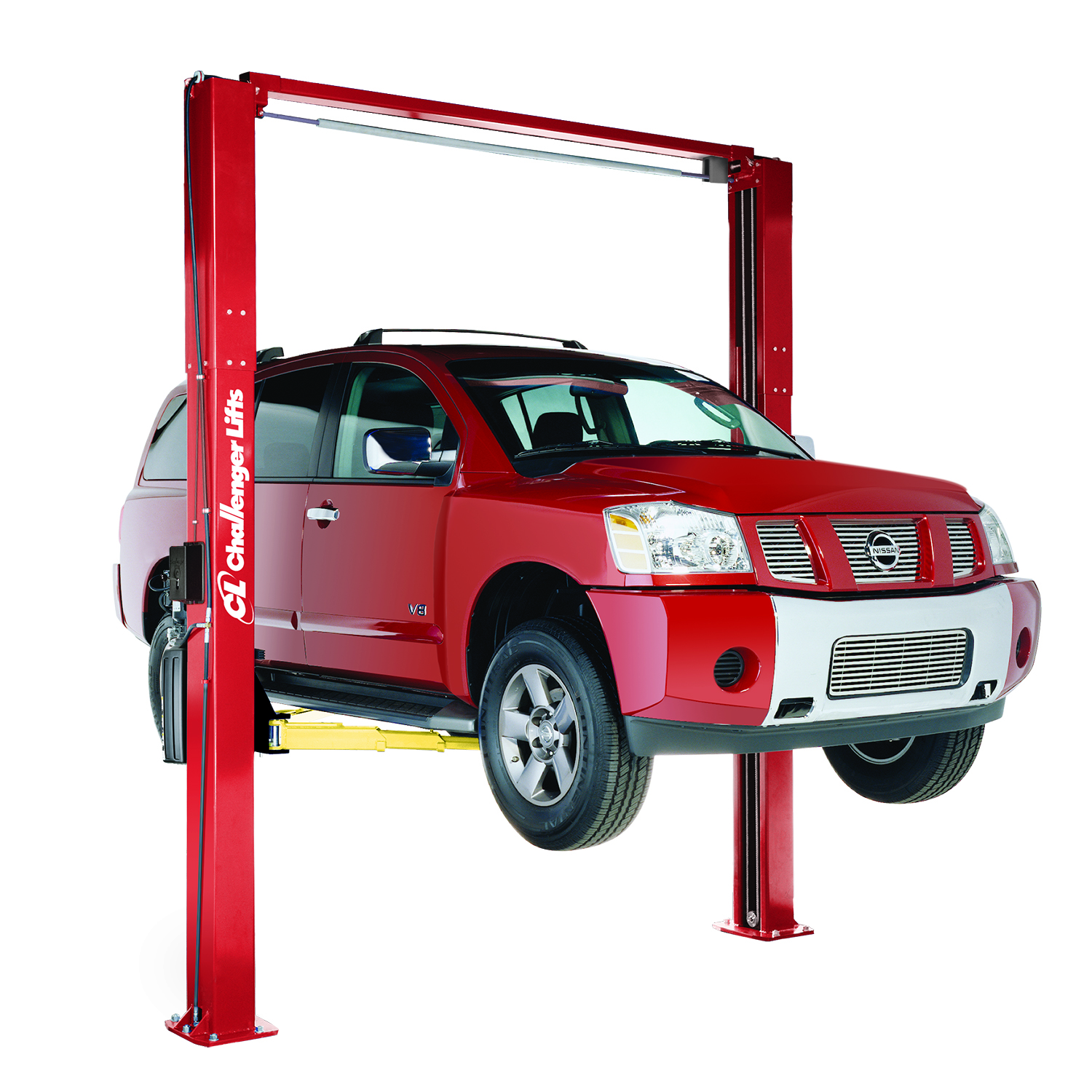

Our 10,000 lb. capacity LE10 economic 2-post lift features our innovative 3-stage front and 2-stage rear arms. Increase revenue potential and efficiency by lifting vehicles both symmetrically and asymmetrically in the same service bay. The LE10 allows you to lift a wide range of cars and trucks for a great value. Accommodate higher profile vehicles with optional 2 foot column extensions.

ALI/ETL certified.


Features:

  • 10,000 lb. lift capacity
  • 3-stage front arm and 2-stage rear can lift both symmetrically and asymmetrically within the same service bay
  • Premium double telescoping screw pads adjust to multiple heights minimizing the need for adapters
  • 11′ 11 7/8″ standard height allows lift to be placed in service bay with 12 foot ceiling.
  • Jacketed pulley-less single-point mechanical lock release system that was once exclusive to our CL Series
  • Padded overhead shut off system prevents vehicle damage
  • Powder coat finish provides long-lasting durability
  • Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage

TECHNICAL SPECIFICATIONS

Lifting Capacity 10,000 lbs.
Lifting Configuration Symmetric & Asymmetric
Arms 3-stage front/2-stage rear
Rise Height 74.75”
Overall Height 143.875”
Overall Height (Cylinder Extended) 143.875”
2’ Height Extension Available √
Overall Width 131.75”
Drive-Thru Clearance 98.375”
Floor to Overhead Switch 137”

Front Arm Reach 21.75” / 39.25”
Rear Arm Reach 38.75” / 55.375”
Screw Pad Height 4.25” / 6.75”
Inside Columns 110.25”
Motor / Voltage 2HP, 208v-230v, 60Hz, 1Ph
Speed of Rise 43 s
Ceiling Height Required 12’
ALI/ETL Certified √
Colors Available Red, Blue
