SPOA10TRIO

The world’s best selling asymmetrical lift is updated to service a broader range of vehicles - with one innovative arm design!

  • Patented two-piece, three-stage arm
  • Vehicle Spotting Speed & Ease
  • Performance tested to 20,000 lift cycles
  • True asymmetrical rotated column design
  • ALI Gold Certified (SPOA10TrioX)


Description:

TRIO ™ Series asymmetric lifts are three arm configurations in one lowprofile arm design. With lifting capabilities of 10,000 lbs., Rotary engineers have created a patented two-piece, three-stage asymmetrical arm that accommodates a wider range of vehicles.

Versatility in matching the right adapters on a single lift is a win for any service bay and adapters are now interchangeable with three vehicle contact options. Technicians can choose the best adapter set for each vehicle to be serviced all on the same arm.


TECHNICAL SPECIFICATIONS

ModelsSPOA10-TRIO-FASPOA10-TRIO-TASPOA10-TRIO-RASPOA10 Conventional
Arm Type

Trio™ 3-Stage Design

Trio™ 3-Stage Design

Trio™ 3-Stage Design

Conventional 2-Stage Design

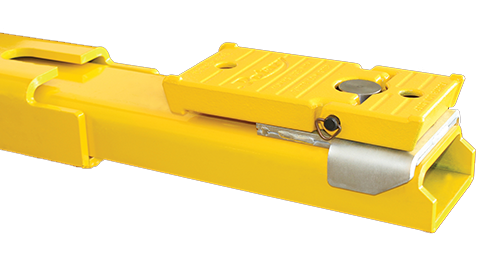

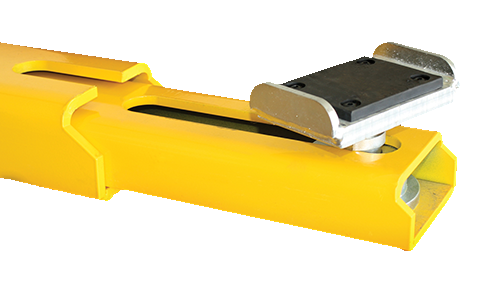

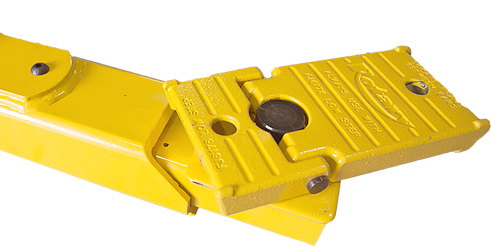

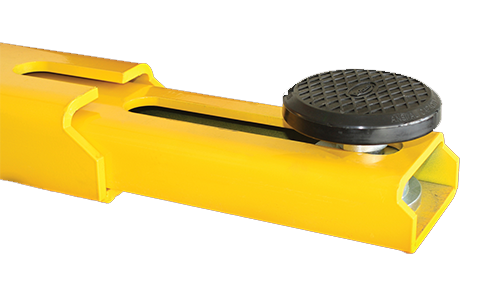

Adapters Flip-UpTruckRound Standard Flip-Up
Capacity10,000 lbs.10,000 lbs.10,000 lbs.10,000 lbs.
Rise78"82 1/2"73 1/8"78 1/4"
Overall Height11' 8 1/2"11' 8 1/2"11' 8 1/2"11' 8 1/2"
Overall Width11' 5 3/8"11' 5 3/8"11' 5 3/8"11' 5 3/8"
Drive-Thru95 1/4"95 1/4"95 1/4"95 1/4"
Front Arm Min/Max21 3/4" - 43 1/2"20 1/2" - 40 3/4"20 1/2" - 40 3/4"24"- 40 3/4"
Rear Arm Min/Max37" - 61"34 1/2" - 58 1/4"34 1/2" - 58 1/4"40 1/4"- 61"
Min. Adapter Height4 3/4"4 1/8"3 31/32"4 3/4"
Max. Adapter Height10 1/4” 5 3/8"5 1/4"N/A
Min. Bay Size12'x24'12'x24'12'x24'12'x24'
Ceiling Height Min.12'12'12'12'
Motor2 HP2 HP2 HP2 HP
Voltage208v-230v208v-230v208v-230v208v-230v
Time of Full Rise/Decent45 secs./40 secs.45 secs./40 secs.45 secs./40 secs.45 secs./40 secs.
