Autel - MaxiTPMS TS608 (NEW)
Type of Product: Diagnostics - TPMS   |

MaxiTPMS TS508

The MaxiTPMS® TS508 is a new generation TPMS diagnostic & service tool specially designed to activate all known TPMS sensors, read TPMS sensor status, check TPMS system health condition, program MX-sensors and conduct TPMS relearn. With Quick Mode and Advanced Mode options, you can save time and energy by choosing the most suitable way to complete TPMS work. TS508K, the starting TPMS kit with one tool and 8 sensors, can be your right choice to experience AUTEL TPMS lines.

Autel - MaxiTPMS TS508 (NEW)

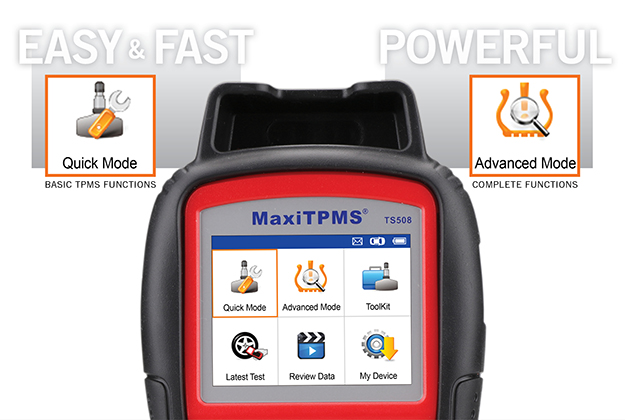

TWO TPMS SERVICE MODES

The TS508 is a new generation complete TPMS tool that offers the option to choose one of two service modes from the home screen, to provide faster and smarter TPMS repairs. Based on the TPMS service type needed, the option to choose the basic Quick Mode or the complete Advanced Mode will decrease repair time.

Tpms 2

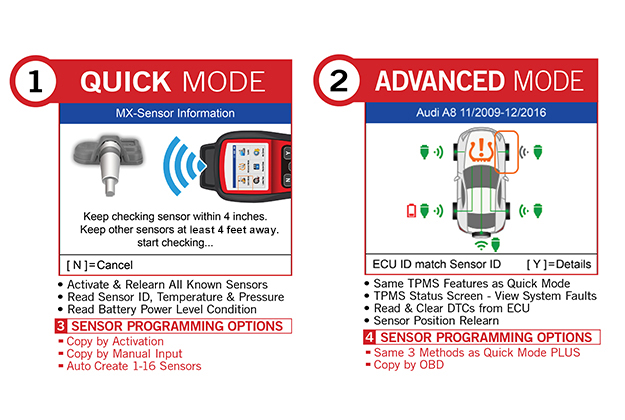

QUICK MODE / ADVANCED MODE COMPARISON

TPMS Quick Mode: basic TPMS functions to check TPMS sensors and program MX-Sensors quickly;

TPMS Advanced Mode: complete TPMS functions to perform sensor check, TPMS diagnose, MX-Sensor program and sensor position relearn.

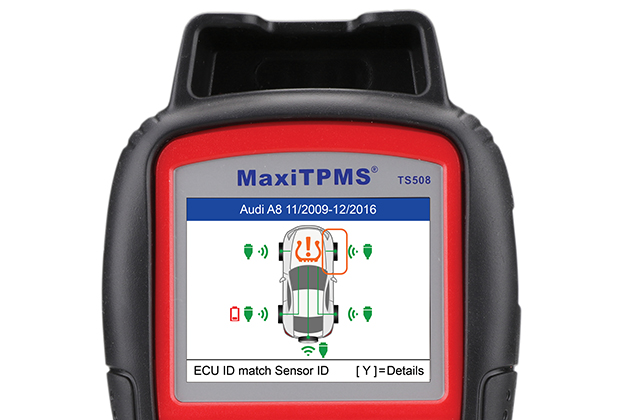

EXCLUSIVE TPMS STATUS SCREEN

  1. Read ECU sensor ID;
  2. Check sensor ID and ECU ID matching condition;
  3. Read DTCs from ECU and erase DTCs;
  4. View DTCs detail description;

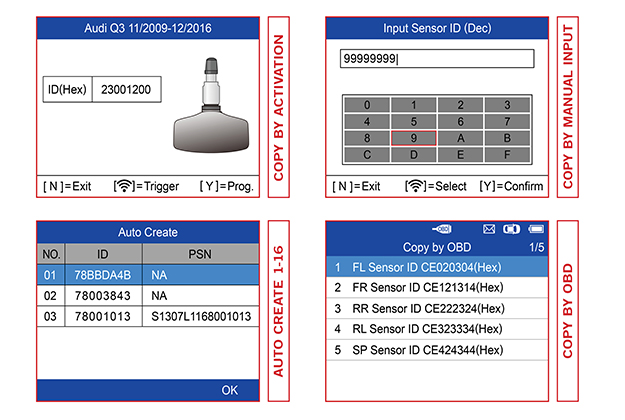

FOUR MX-SENSOR PROGRAMMING OPTIONS

  1. Copy By Activation;
  2. Copy By Manual Input;
  3. Auto Create 1-16;
  4. Copy By OBD;




TECHNICAL SPECIFICATIONS

Display TFT color display (320 x 240 dpi)
Power 3.7 V Li-polymer battery; 3200 mAh
Operating Temp. 0°C to 50°C (32°F to 122°F)

Storage Temp. -20°C to 70°C (-4°F to 158°F)
Dimensions 215 mm (8.46”) / 105 mm (4.13”) / 37 mm (1.46”)
Weight 0.39 kg (0.86 lb.)

DOWNLOAD DOCUMENTS


TS508 Introduction (US Version) - PDF

TS508K Introduction (US Version) - PDF

TS508 User Manual V1.00 (ES) - PDF

TS508_PR_07122017(US Only) - PDF

TS508K_PR_07122017(US Only) - PDF

TS508 User Manual V2.1 - PDF

Maxi_PC_Suite_V1.21 Windows Version - zip

MaxiPCSuite_mac_V1.11 Mac Version - zip

TS508_Quick Guide_V3 - PDF

TS508_V5.5X_functionlist_EU - PDF

TS508_V5.5X_functionlist_US - PDF
