CEMB - SM645 Tire Changer
Type of Product: Changer   |

SM645HPA & SM645HP2 Tire Changers

SM645HPA

A professional quality automatic locking tilt-column tire changer features HPA high performance press arm, additional drop center press arm and tire lift helper, highly recommended to easily aid in the servicing of high performance and run flat tires with stiff sidewalls and difficult wheels with deep drop centers. Features dual table clamping cylinders with Space-Saver under table adjustable clamping range.

SM645HP2

Professional quality automatic locking tilt-column tire changer features HP2 high performance press arm highly recommended to easily aid in the servicing of high performance and run flat tires with stiff sidewalls and difficult wheels with deep drop centers.


Features

SM645HPA

  • Traditional 2 arm set up: Press arm and help arm
  • Self-centering plate with 12-26” locking capacity.
  • Tilt-back mount-demount arm automatically rotates and lowers into position. Utilizes pneumatic control and high quality locking system with roller guides.
  • Bead loosening system: Adjustable to the correct angle to fit diameter and width improving control accuracy.

SM645HP2

  • Equipped with the HP2 side presser that facilitates mounting and dismounting operations of Run-flat and UHP tires.
  • Self-centering plavith 12-26” locking capacity.
  • Tilt-back mount-demount arm automatically rotates and lowers into position. Utilizes pneumatic control and high quality locking system with roller guides.
  • Bead loosening system: Adjustable to the correct angle to fit diameter and width improving control accuracy.

TECHNICAL SPECIFICATIONS


Power Supply: 110V, 1ph
Air Pressure: 115-145 psi (8-10 bar)
Rim Diameter (Ext.): 12" - 26"

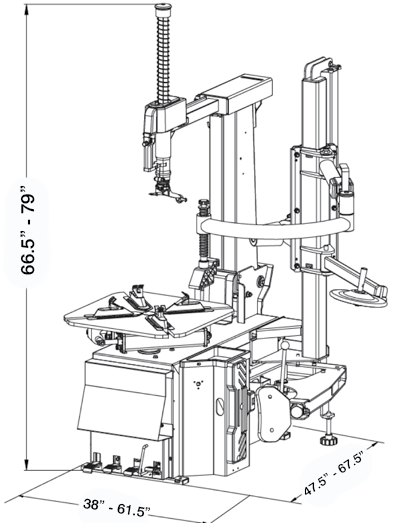

Dimensions:



Tire Diameter: 44"
Max. Wheel Width: 13"
Turn Table Speed: 8-15 rpm
Shipping Weight: 950 lbs (SM645HP2) 1050 lbs (SM645HPA)

DOWNLOAD DOCUMENTS



Tags: Changers
